Island Collection
Tobago

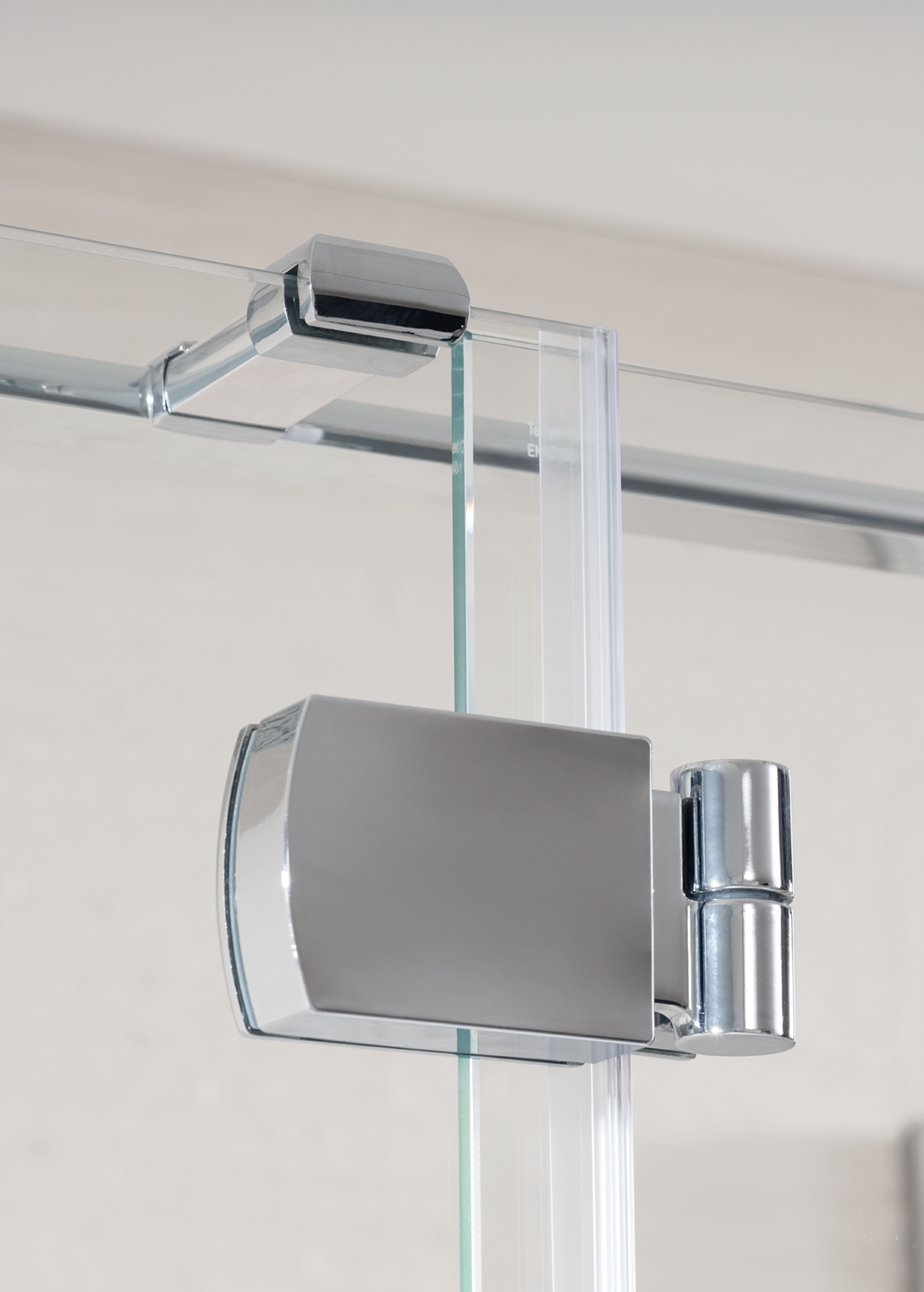

Frame free and carefree, with its hinged panel, door and side panel Tobago is the glistening jewel in the crown of his Caribbean inspired island range – a winning combination of simplicity and sophistication.
Price from £1,484.40 Inc. VAT
- Suitable for:
- Corner Shower Enclosures
- Features:
- Frameless Hinged Doors
- 8mm Glass
- 2m High
- Suitable for Wet Room or Tray
- Fully Reversible
- Lifetime Guarantee
- AllClear as Standard
- PureVueHD Glass as Standard
Compare and save your favourite products
Product sizes and prices
| Standard Size (A x height) | Width Adjustment | Doorway Opening (D) | Price Exc. VAT | Price Inc. VAT | Order Codes |
|---|---|---|---|---|---|
| 1200 x 2000 | 1160 - 1190 | 628* | £958.00 | £1,149.60 | 1 x LK804-070S & 1 x LK803-050S |
| 1400 x 2000 | 1360 - 1390 | 628* | £993.00 | £1,191.60 | 1 x LK804-070S & 1 x LK803-070S |
| 1600 x 2000 | 1560 - 1590 | 628* | £1,030.00 | £1,236.00 | 1 x LK804-070S & 1 x LK803-090S |
| Standard Sizes (B x height) | Width Adjustment | Price Exc. VAT | Price Inc. VAT | Order Code |
|---|---|---|---|---|
| 700 x 2000 | 670 - 685 | £279.00 | £334.80 | LK805-070S |
| 750 x 2000 | 730 - 745 | £290.00 | £348.00 | LK805-075S |
| 800 x 2000 | 770 - 785 | £298.00 | £357.60 | LK805-080S |
| 900 x 2000 | 870 - 885 | £316.00 | £379.20 | LK805-090S |
| 1000 x 2000 | 970 - 985 | £336.00 | £403.20 | LK805-100S |
Please Note: To create your Tobago enclosure you will need to select one product from each table above.
*Other Door sizes may be used to create alternative enclosure sizes – please call Lakes for advice.
20mm Extension Profile £26.40 inc. VAT (LK8LEPS Silver)
Tobago can be adjusted for out-of-plumb walls by a maximum of 15mm (for each mounting wall) over the height of the product. The hinge provides a further 15mm adjustment.
The required Bracing Bar for the Hinge Panel and Side Panel is included.
Not suitable for installations with tray rims <50mm wide
All measurements are in mm.

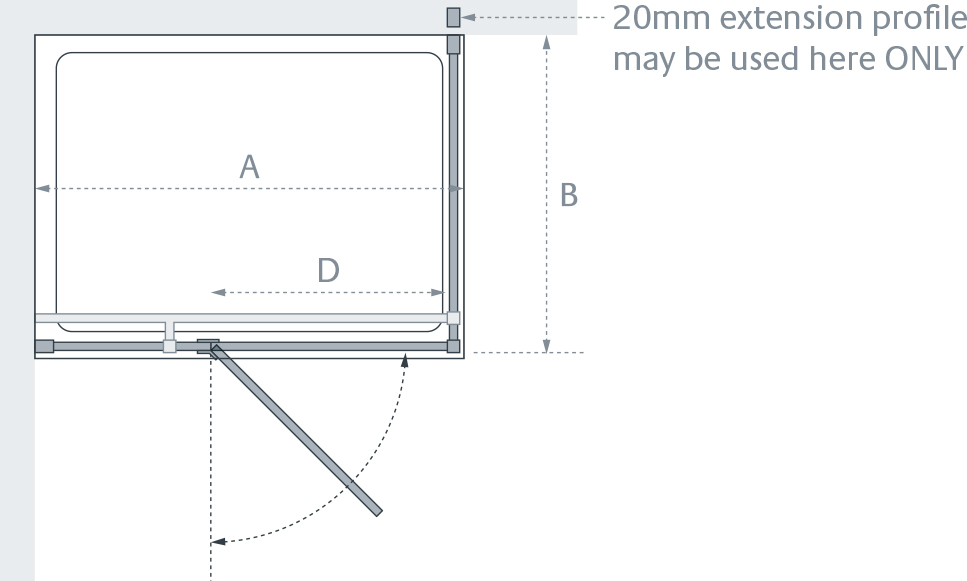

Technical Drawings Enlarge
